Connect GitHub

This guide shows you how to connect a workspace to GitHub. You need the owner role in the workspace.

Vellum reads repositories. It never writes to them.

Public repositories

A public repository needs no token. GitHub allows a small number of requests each hour without one, so a large scan can pause until the limit resets.

Private repositories

On GitHub, create a fine-grained personal access token. Select only the repositories Vellum must read. Give it read-only access to Contents and Metadata.
In Vellum, open Settings, then GitHub.
Select Set next to the access token, paste the token and select Save.

Vellum encrypts the token and does not show it again. The token is bound to the host of the API base URL. Vellum sends it to that host only.

On a local instance, Vellum can read GitHub with the token of the GitHub CLI. You need gh, logged in with gh auth login.

Start Vellum with your gh token:
Terminal window
```
just up-gh
```
This runs GH_TOKEN=$(gh auth token) docker compose up -d --build. It stops with a message when gh is missing or not logged in.
In Vellum, open Settings, then GitHub. The page shows GitHub: your gh login (your-login), from GH_TOKEN.

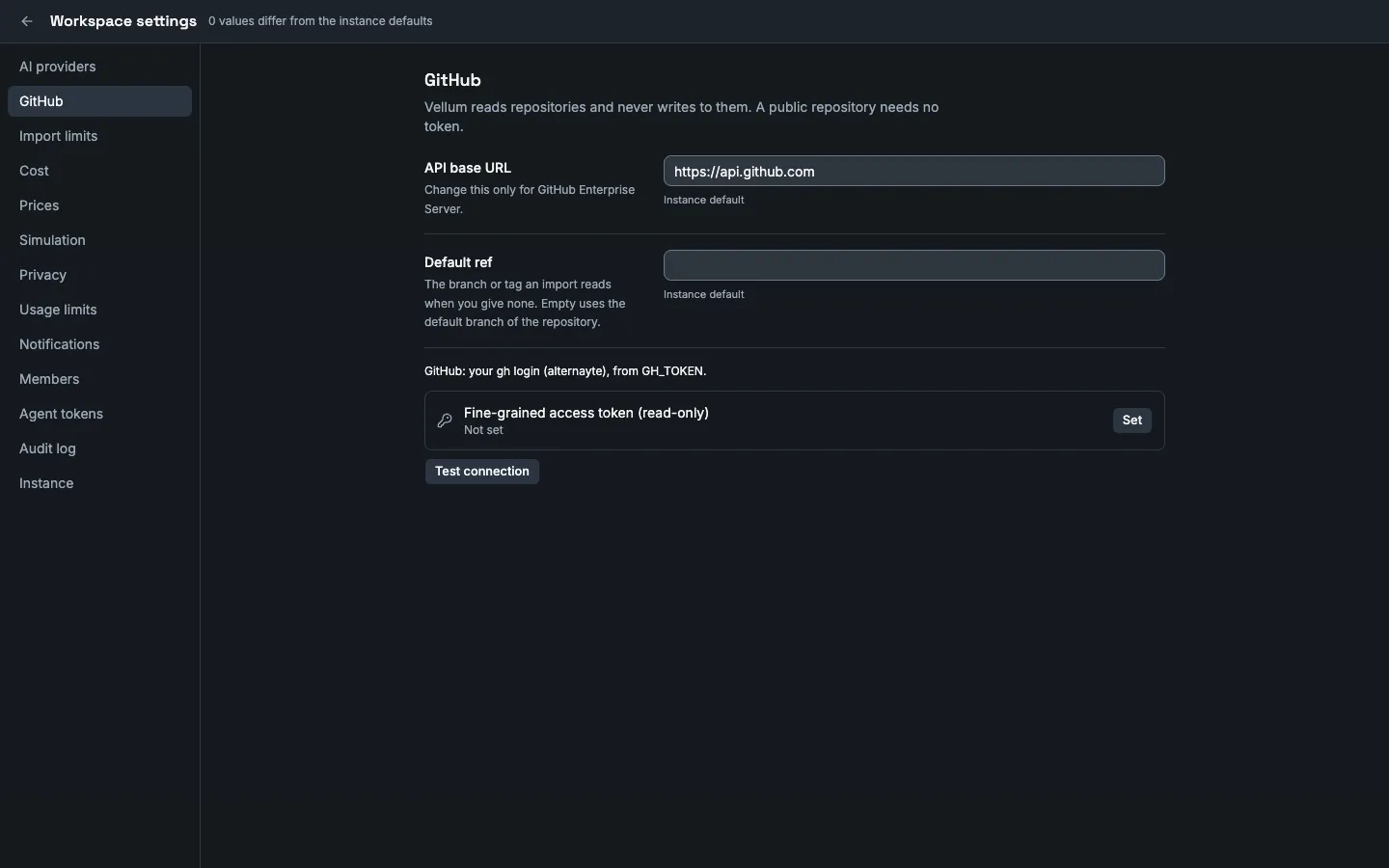

The GitHub section of the workspace settings. API base URL is https://api.github.com, the instance default. Default ref is empty. The line below says GitHub: your gh login, from GH_TOKEN. The fine-grained access token (read-only) is Not set, with the button Set. Below it is the button Test connection.

These rules apply:

Vellum uses GH_TOKEN only for a workspace that has no access token of its own. A workspace token always wins.
Vellum uses GH_TOKEN only for workspaces where the instance admin is an Owner. Another user’s workspace reads anonymously or with its own token.
Vellum sends GH_TOKEN to https://api.github.com only, never to a GitHub Enterprise Server.
Vellum reads GH_TOKEN once at start. To use a new gh login, restart Vellum.
Vellum does not store GH_TOKEN. It reads GH_TOKEN only, never GITHUB_TOKEN.
A hosted instance ignores GH_TOKEN. The instance diagnostics show the state.

To run without the gh login, start with just up-all or docker compose up -d.

GitHub Enterprise Server

Set API base URL to the API address of your server, for example https://github.example.com/api/v3. Save the change, then enter the token again.

Test the connection

Select Test connection. The result names the account of the token and the requests that remain in this hour. Without a token it says that only public repositories are reachable.

What Vellum requests

Vellum asks GitHub for the repository, the commit a branch or tag points to, the file tree of that commit, the files it reads, the comparison of two commits, and a pull request. It follows a redirect only to the same host.
